QSC50KJ4 UPC/APC Optic fiber fast connector-flip tail-cable lock part
{{ row.create_time }} {{ _lang(languagePackage, 'read_time', '', [row.read_time]) }}
1. Specification:
| No. | Item Name | Description |
| 1 | Insertion Loss (dB) | Max.≤0.5dB, Typical≤0.3dB |
| 2 | Return Loss (dB) | Max. APC≤-50dB, Typical≤-55dB Max UPC≤-40dB, Typical≤-45dB |
| 3 | Ferrule End Face | A Zone no scratches at 400X |
| 4 | 3D Interferometry | Complies to IEC 2009 |
| 5 | Average Assembling Time | ≤ 3 min |
| 6 | First-Time Done Yield Rate | ≥ 95% |
| 7 | Re-Operation Times | 5 times |
| 8 | Repeatability (±0.2dB) | ≥ 90% |
| 9 | Appearance | No Defects |
| 10 | Tensile Strength | >25N |

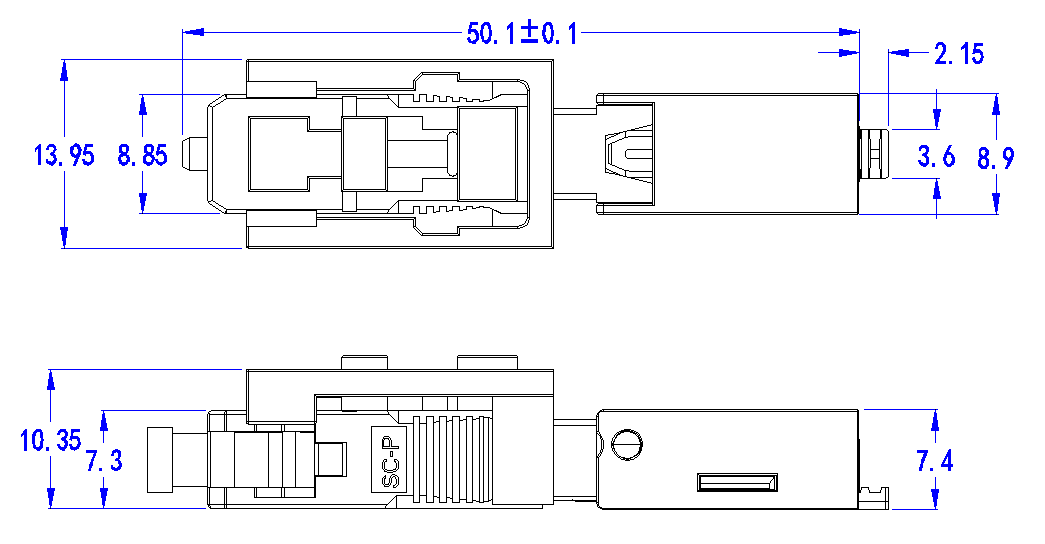

2. Outline

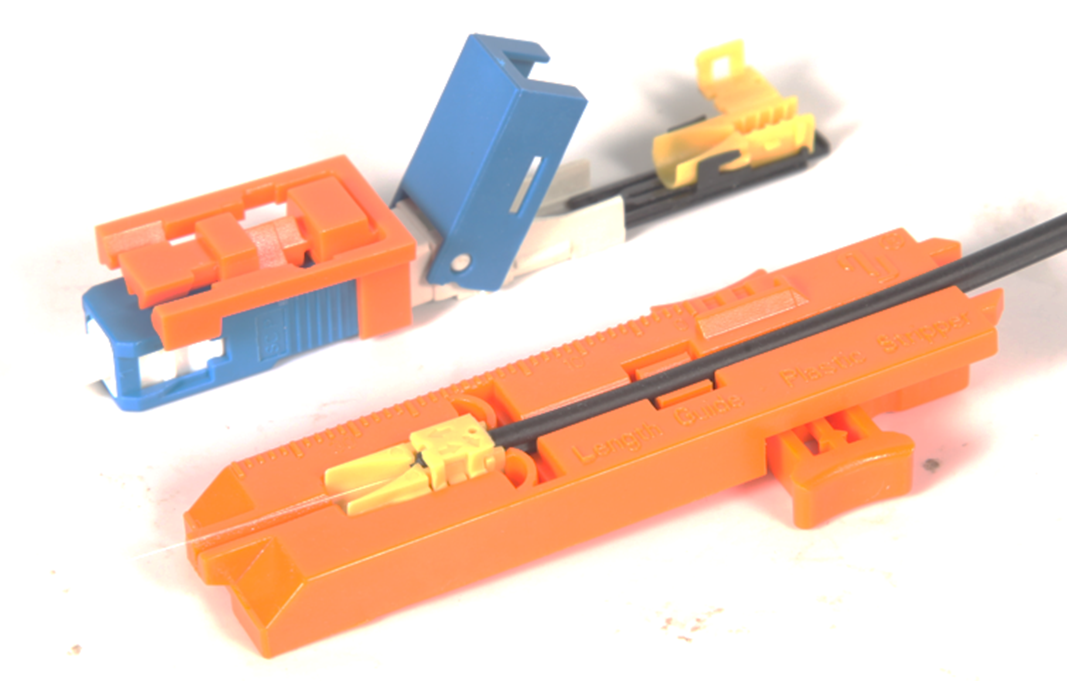

3. Product image

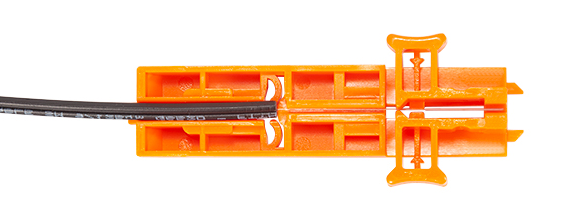

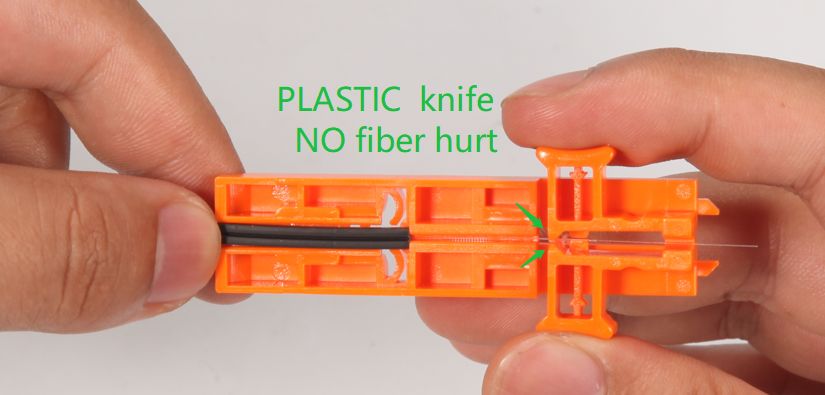

4. The ADVANCE TOOL with PLASTIC Knife to strip fiber coating, 100% no hurt the fiber glass

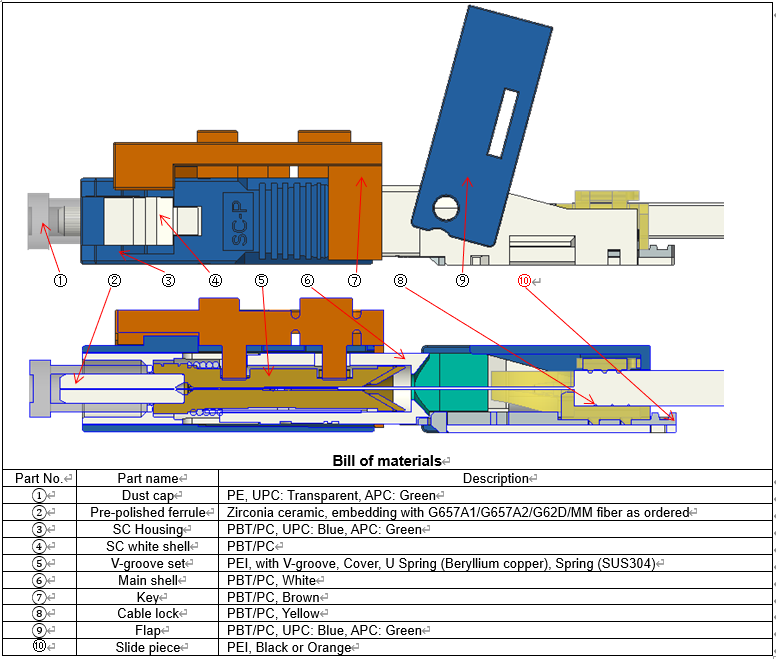

5. Structure & Material bill

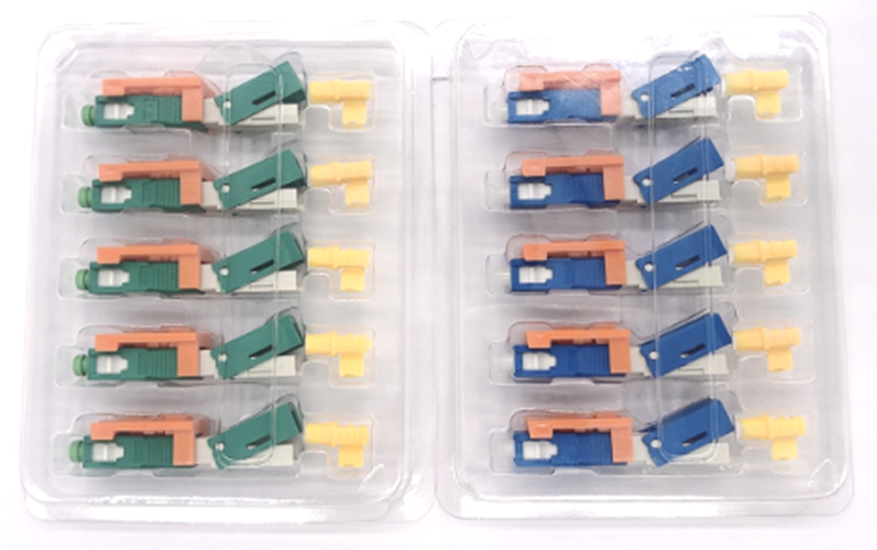

6. Package
