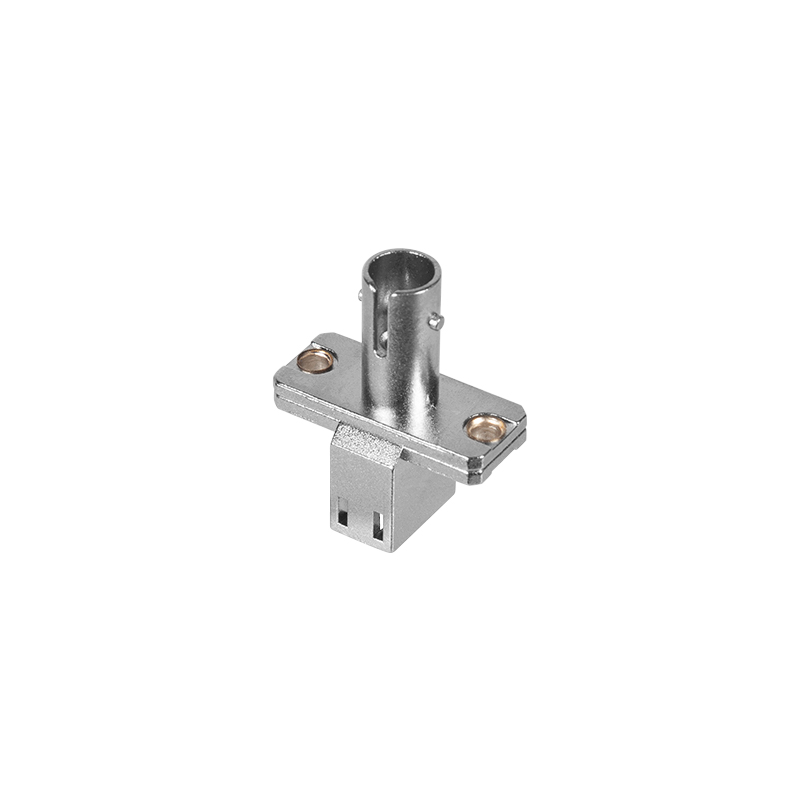

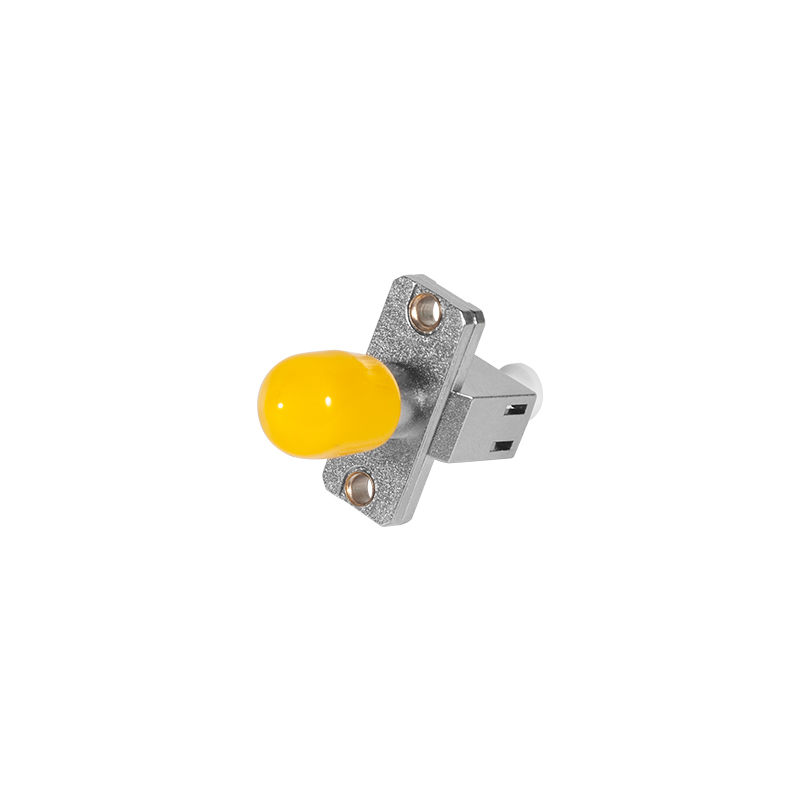

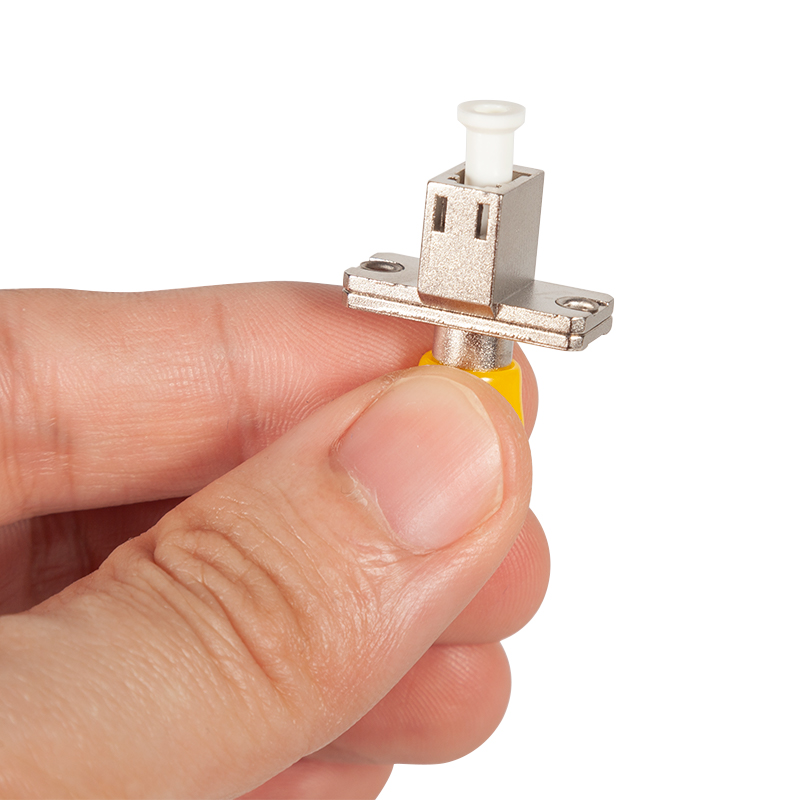

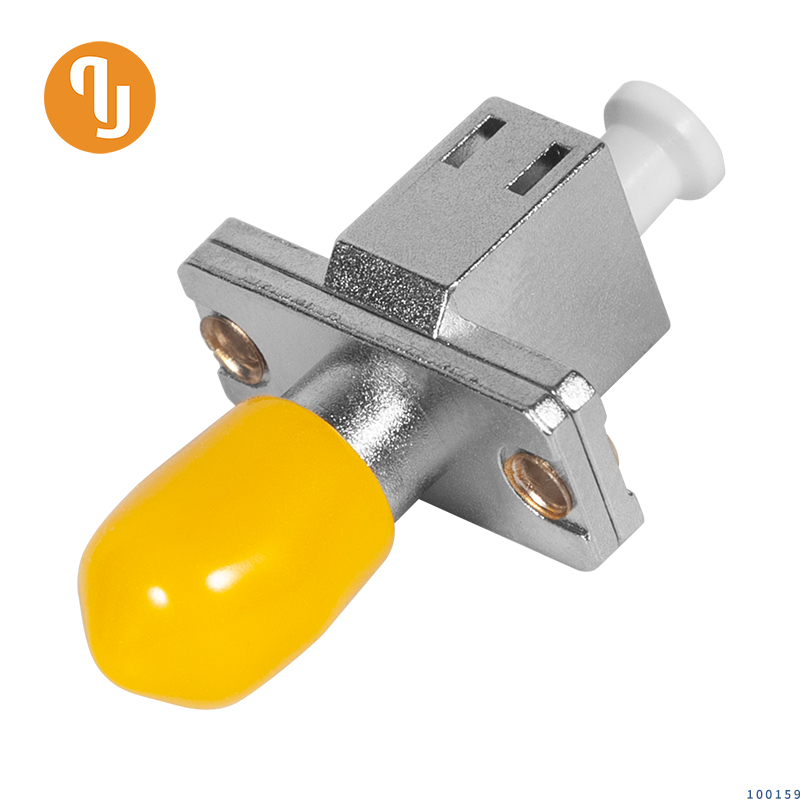

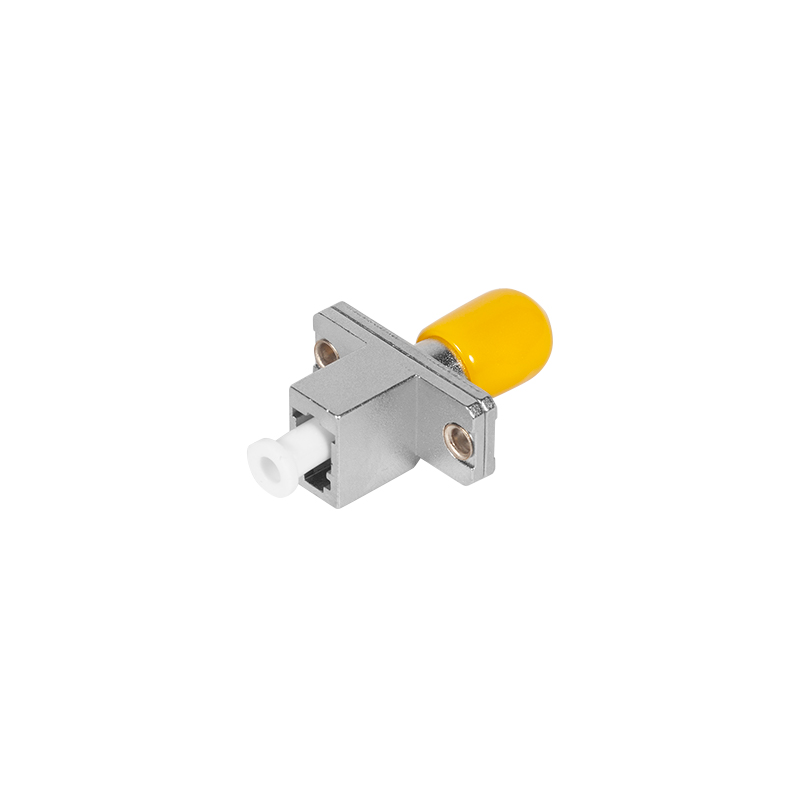

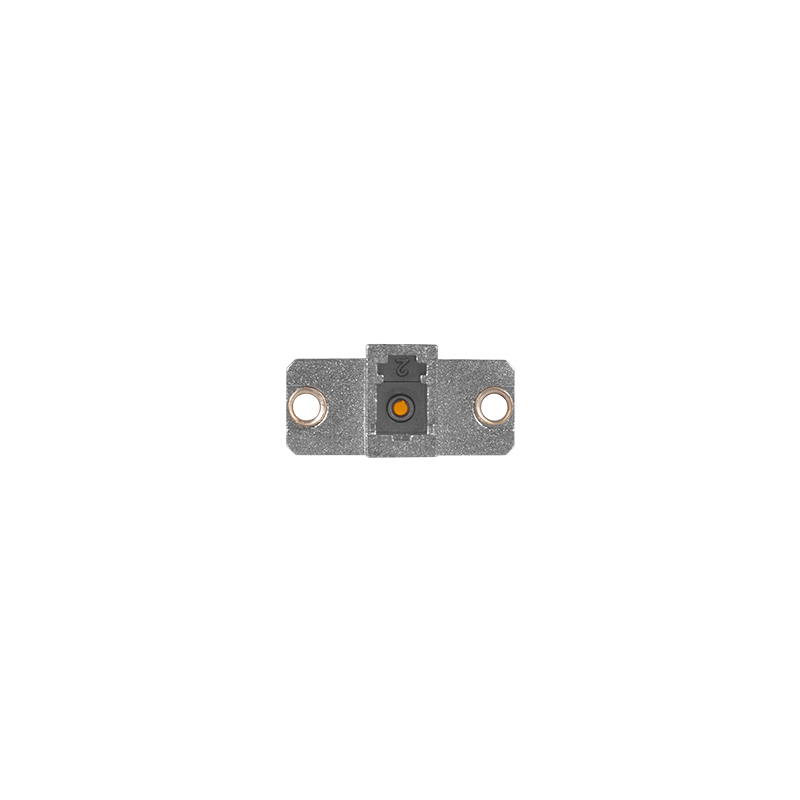

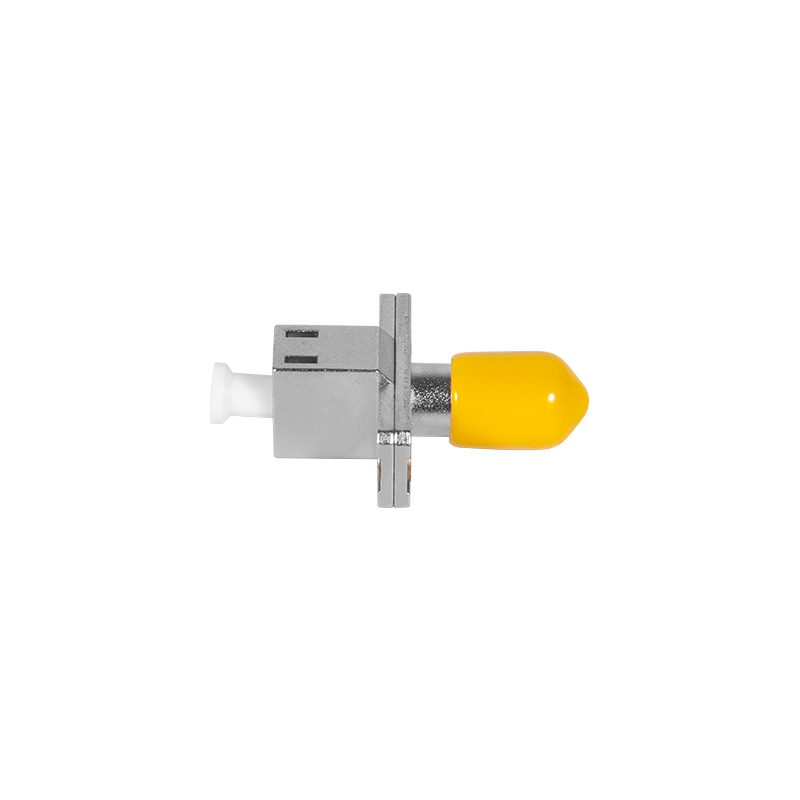

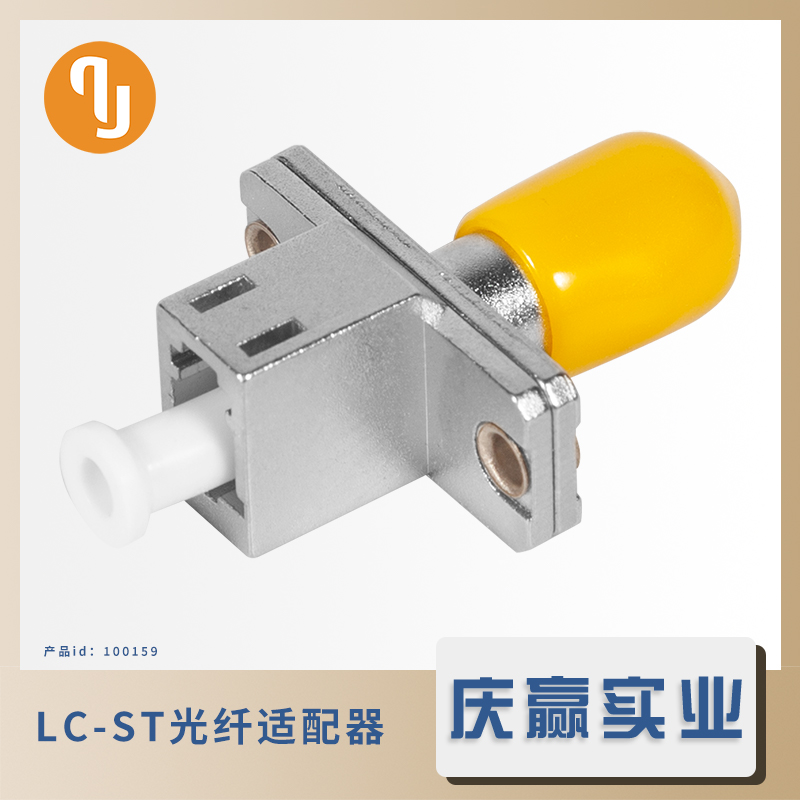

QADLCST-408 LC to ST Metal Fiber Adapter
Base specification
Product details
QADLCST-408-UPC/APC Metal Transformer Optic Fiber Adapter
1. Product positioning
QADLCST-408 LC-ST metal fiber optic adapter is designed for applications that require conversion of connector formats in optical links.
2. Core structure
Metal shell: high strength, corrosion resistance, and wide temperature adaptability.
Long ear design: The installation holes are compatible with SC standard panel fixing holes.
APC/UPC level: Insertion loss ≤ 0.2dB @ 1260-1650nm.
3. Technical Specifications
| Specification | Value | Note | |
| Optical | IL | ≤0.2dB @1260~1650nm | |
| Sleeve direction IL | IL≤0.2dB, 0-90-180-270 4 directions | ||
| Mechanical | Plug in out force | 2~6N, typical 3.5N | |
| Lock structure strength | 68.6N/15s | LC ST structure may be weaker by their own standard | |
| 40N/10min——-IEC61300-2-6 | |||
| 70N/10min-GR326 | |||
| Sleeve strength | axial 6.8kgF/5s, No crack and IL OK | ||
| 90° 3.4kgF/5s, No crack and IL OK | |||
| Repeatability | 500 times | ||
| Temperature | Work temperature | -40~+75°C | |
| Storage temperature | -40~+75°C | ||
| Flame retardant | Grade | UL 94-V0 | |
| RoHS | YES |
4. Application Scenarios
• FTTH fiber distribution boxes, corridor boxes
• 1U/2U high-density data center patch panels
• 5G frontal ODFs, outdoor integrated cabinets
5. Packaging and Ordering
• Standard Packaging: 100 pieces per bag, 1000 pieces per box
• Model Code: QADLCST-408
• Optional Accessories: Dust cap, Installation clip (available separately)
6. Warranty and Services
• 100% three-wavelength optical inspection upon factory delivery
• 1-year warranty, lifetime technical support
